Basic Info.
Model NO.
GYHC
Standard
IEC 61095
Transport Package
Standard
Specification
220V 24VAC
Trademark
GEYA
Origin
Zhe

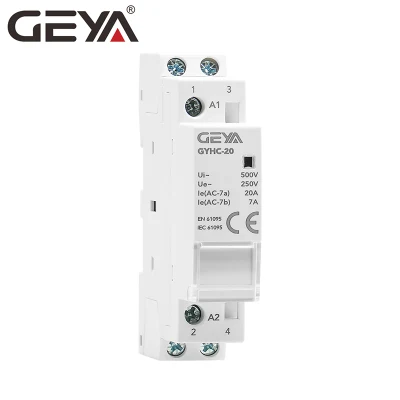

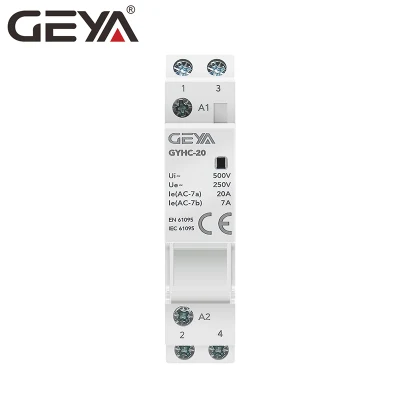

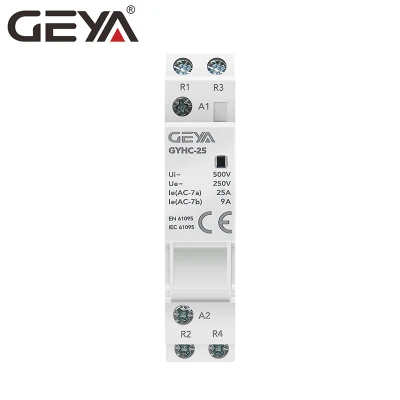

Product Description
Low power consumption:
The GYHCseries modular contactor optimizes the electromagnetic system, greatly reducing the holding power of the contactor, and completely solves the problem of high energy consumption of traditional contactors.
Low noise:
GYHC series modular contactor adopts a new design to improve product reliability.60% of the production process is automated, and key processes throughout the process are monitored automatically. Eliminate the noise problems encountered in the operation of traditional contactors from the design and manufacturing process.
Super long life:
Electrical life greater than 100,000 times
Mechanical life is more than 12,000,000 times

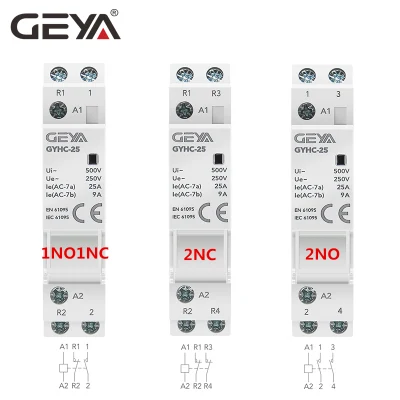

| Type | Rated current(In) | Control voltage (V) | Contact | Multiple Of The Width Of The Module (Multiple of 9 mm) | |
| AC-7a | AC-7b | ||||
| 1P | 16A | 6A | AC 50/60Hz 24V/48V/110V/230V DC:12V/24V | 1NO 1NC | 2 |
| 20A | 7A | ||||
| 25A | 9A | ||||
| 2P | 16A | 6A | 2NO 2NC 1NO1NC | 2 | |
| 20A | 7A | ||||
| 25A | 9A | ||||
| 32A | 12A | 4 | |||
| 40A | 15A | ||||
| 63A | 20A | ||||
| 3P | 16A | 6A | 3NO 3NC | 4 | |
| 20A | 7A | ||||
| 25A | 9A | ||||
| 32A | 12A | 6 | |||
| 40A | 15A | ||||
| 63A | 20A | ||||
| 4P | 16A | 6A | 4NO 4NC 2NO2NC 3NO1NC | 4 | |
| 20A | 7A | ||||
| 25A | 9A | ||||
| 32A | 12A | 6 | |||
| 40A | 15A | ||||
| 63A | 20A | ||||
