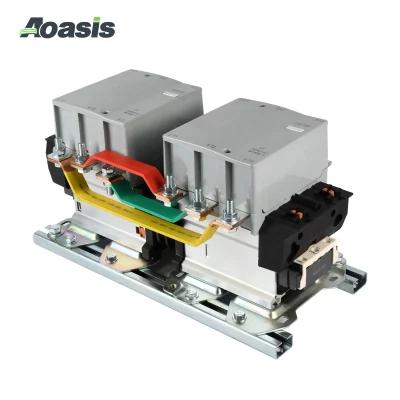

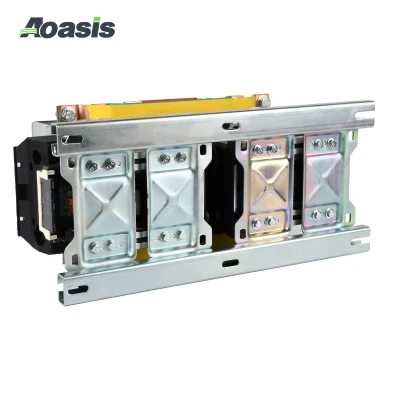

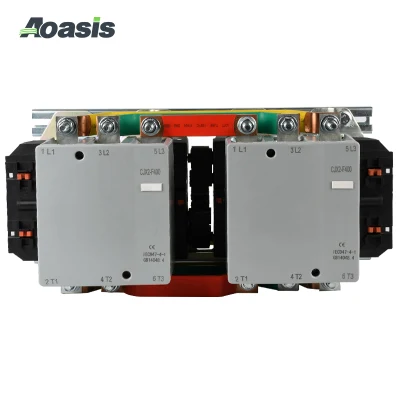

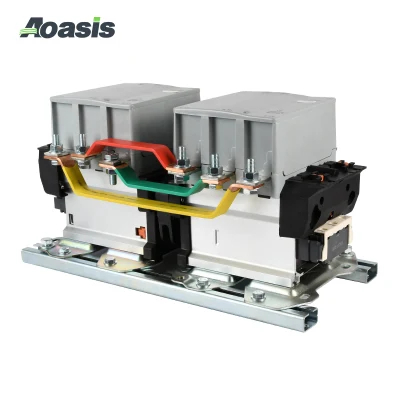

Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor

Get the high-capacity Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor from our factory. Quality and reliability guaranteed.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Catalog
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
CJX2-F400N/500N
Main Circuit Rating Voltage
1000V
Main Circuit Rating Current
115A~800A
Type
Ac Contactors
Place of Origin
Zhejiang, China
Brand Name
Aoasis
Name
Large Capacitty Contactor
Model Number
Cjx2-F400/500n
Frequency
50Hz/60Hz
Warranty
18 Months
Transport Package
Standard Packing
Trademark
AOASIS
Origin
China
HS Code
8536490090
Production Capacity
9999piece/Pieces Per Month

Packaging & Delivery

Package Size
57.00cm * 27.50cm * 30.00cm
Package Gross Weight
20.000kg

Product Description



Product Description

CJX2-F series Large Capacity AC contactor is mainly used for AC 50Hz or 60Hz, with working voltage up to 660V and working current up to 800A, It is used for long distance connection and breaking current, It is also suitable for freguent start andl control of electric motor It can he comhined with auviliary contact oroun air delay head mechanical interiock and then form mechanical interlock contactor, star-delta starter, and suitable thermal overload relay. An electromagnetic starter is designed to protect from possibility of operating an overload circuit.

Technical parameters:

Type

Rated Current

400V(AC-3)

Rated Power of Three-phase Motor(50/60Hz)AC-3(kW)

220V

230V

380V

400V

415V

440V

500V

660V

690V

1000V

CJX2-F115N

115

30

55

59

59

75

80

65

CJX2-F150N

150

40

75

80

80

90

100

65

CJX2-F185N

185

55

90

100

100

110

110

100

CJX2-F225N

225

63

110

110

110

129

129

100

CJX2-F265N

265

75

132

140

140

160

160

147

CJX2-F330N

330

100

160

180

200

200

220

160

CJX2-F400N

400

110

200

220

250

257

280

185

CJX2-F500N

500

147

250

280

295

355

335

335

CJX2-F630N

630

200

335

375

400

400

450

425

CJX2-F80N

800

220

450

425

425

450

475

450



Product Catalog

Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor
Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor
Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor
Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor

Company Profile

Aoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing ContactorAoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing ContactorAoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing ContactorAoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing ContactorAoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing ContactorAoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing ContactorAoasis Cjx2-F400/500n LC1-Fn 500A 1000V AC Mechanical Interlock Large Capacitty Reversing Contactor

FAQ



Q1. What's the payment term?
A. We accept TT,30% deposit and 70% balance before shipping.

Q2. How's the delivery time ?
A. We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate.

Q3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for thiscertificate.

Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
